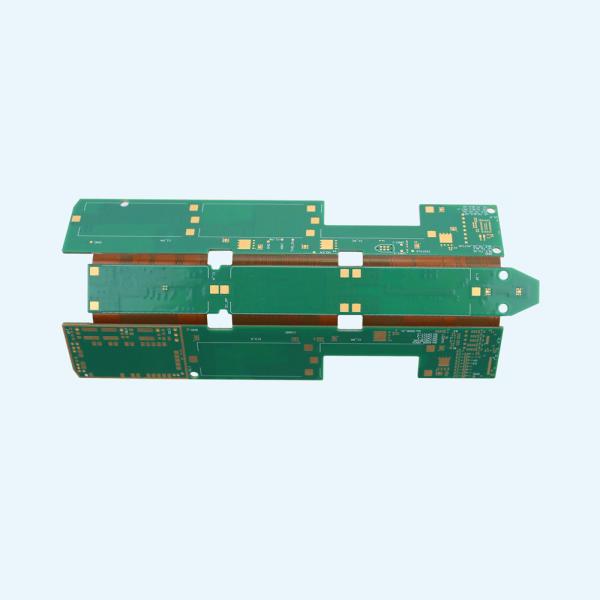

Detector Robotic Arm Rigid Flex Multilayer PCB FR4 Printed Circuit Boards

Name: Detector Robotic Arm Rigid Flex Multilayer PCB FR4 Printed Circuit Boards
Brand: HighLeap
Price: 1 USD

Brand Name : HighLeap

Model Number : Rigid-Flex Pcb

Certification : ISO9001/Iso14001/CE/ROHS

Place of Origin : China

MOQ : 1pcs

Price : USD 1-30 piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 piece per week

Delivery Time : 1-15 working days

Packaging Details : Vacuum Package

Product name : Printed Circuit Board\\

Copper Thickness : 0.5oz/.../6oz

Application : Electronics Device.\

Certificate : CE/ISO\

Board Thickness : 0.2mm-7.0mm.\

Layer : 1-20 Layers.\

Contact Now

Detector/robotic arm Rigid-flex PCB FR4 Printed Circuit Board multilayer pcb

Detector Robotic Arm Rigid Flex Multilayer PCB FR4 Printed Circuit Boards

Technical Capacity
ltem	Rigid PCB	Flexible PCB	Rigid-Flex PCB
Max Layer	60L	8L	36L
Inner Layer Min Trace/Space	3/3mil	3/3mil	3/3mil
Out Layer Min Trace/Space	3/3mil	3.5/4mil	3.5/4mill
Inner Layer Max Copper	6oz	2oz	6oz
Out Layer Max Copper	6oz	2oz	3oz
Min Mechanical Driling	0.15mm	0.1mm	0.15mm
Min Laser Drilling	0.1mm	0.1mm	0.1mm
Max Aspect Ratio(Mechanical Driling)	20:01	10:01	12:01
Max Aspect Ratio(Laser Drilling)	1:01	/	1:01
Press Fit Hole Ttolerance	±0.05mm	±0.05mm	±0.05mm
PTH Tolerance	±0.075mm	±0.075mm	±0.075mm
NPTH Tolerance	±0.05mm	±0.05mm	±0.05mm
Countersink Tolerance	±0.015mm	±0.15mm	±0.15mm
Board Thickness	0.4-8mm	0.1-0.5mm	0.4-3mm
Board Thickness Tolerance(<1.0mm)	±0.1mm	±0.05mm	±0.1mm
Board Thickness Tolerance(≥1.0mm)	±10%	/	±10%
Min Board Size	10*10mm	5*10mm	10*10mm
Max Board Size	22.5*30inch	9*14inch	22.5*30inch
Contour Tolerance	±0.1mm	±0.05mm	±0.1mm
Min BGA	7mil	7mil	7mil
Min SMT	7*10mil	7*10mil	7*10mil
Min Solder Mask Clearance	1.5mil	3mil	1.5mil
Min Solder Mask Dam	3mil	8mil	3mil
Min Legend Width/Height	4/23mil	4/23mil	4/23mil
Strain Fillet Width	/	1.5±0.5mm	1.5±0.5mm
Bow &Twist	0.003	/	0.0005
